Waterbox Peninsula 6025 (L1536 x W643 x H575) - White

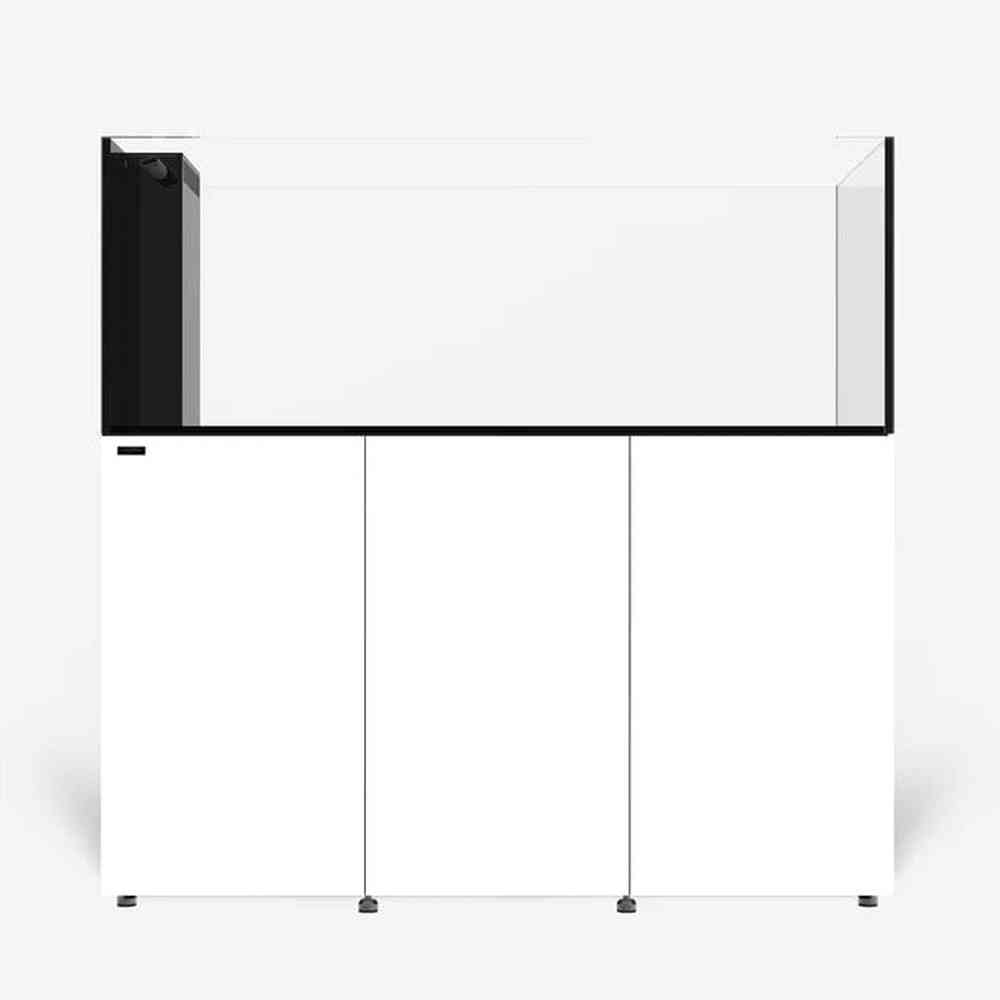

Waterbox Peninsula 6025 - White
-
Dimensions (LxWxH): 1,536 x 643 x 575mm (60.5" × 25.3" × 22.6")
-
Height with Cabinet: 1,502mm/59.1"
-
Display Volume: 517 L/136.6 gals
-
Total Volume: 738 L/195.1 gals
-
Glass Thickness: 15mm (3/5″)
-
Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
| Product Model | PENINSULA 4820 | PENINSULA 6025 | PENINSULA 7225 | |
|---|---|---|---|---|
| System | Height with Cabinet | 1,450mm/57.1" | 1,502mm/59.1" | 1,527mm/60.1" |
| Total Volume with ATO | 443 L/117.1 gals | 738 L/195.1 gals | 875 L/231.2 gals | |
| Display Tank |
Tank Dimensions | 1,200 x 500 x 550mm | 1,536 x 643 x 575mm | 1,836 x 643 x 600mm |
| 47.2" x 19.6" x 21.7" | 60.5" × 25.3" × 22.6" | 72.3" × 25.3" × 23.6" | ||
| Glass Thickness | 12mm (1/2") | 15mm (3/5″) | 19mm (3/4") | |
| Aquarium Volume | 301 L/79.6 gals | 517 L/136.6 gals | 632 L/167 gals | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||

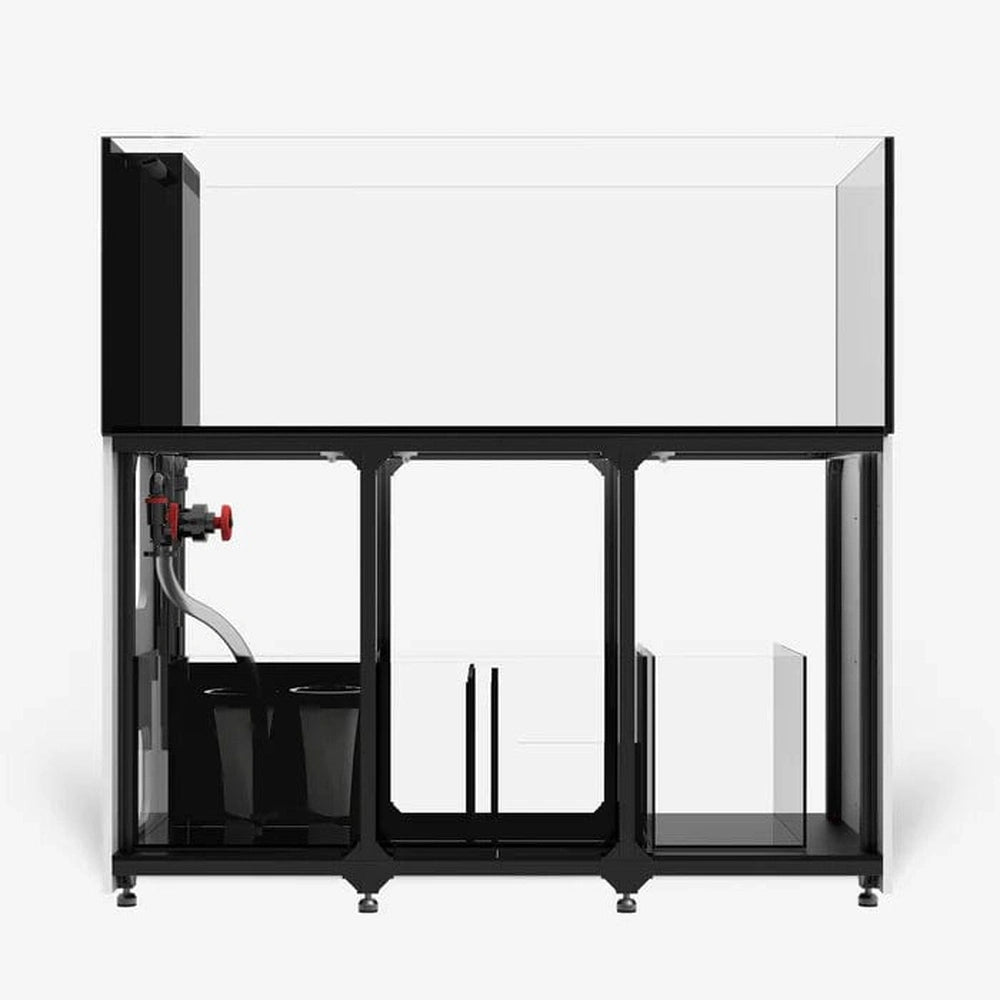

| In-cabinet Sump |
Dimensions | 800 x 400 x 380mm | 1,016 x 475 x 380mm | 1,143 x 475 x 380mm |
| 31.5" × 15.7" × 15" | 40" × 18.7" × 15" | 45" × 18.7" × 15" | ||
| Sump Volume | 114 L/30.2 gals | 171 L/45.1 gals | 192 L/50.8 gals | |
| Glass Thickness | 6mm (1/4") | 8mm (5/16") | 8mm (5/16") | |
| Refugium Chamer (Max Int. Dimensions) |
250 x 342mm | 250 x 413mm | 300 x 413mm | |
| 9.8" × 13.5" | 9.8" × 16.3" | 11.8" × 16.3" | ||
| Refugium Chamer (Min Int. Dimensions) |
200 x 342mm | 200 x 413mm | 230 x 413mm | |
| 7.9" × 13.5" | 7.9" × 16.3" | 9.1" × 16.3" | ||
| Skimmer Chamber (Int. DIM, w/o Refugium) |
487 x 342mm | 546 x 413mm | 673 x 413mm | |
| 19.2" × 13.5" | 21.5" × 16.3" | 26.5" × 16.3" | ||
| Skimmer Chamber (Int. DIM, with Min Refugium) |
282 x 342mm | 341 x 413mm | 438 x 413mm | |
| 11.1" × 13.5" | 13.4" × 16.3" | 17.2" × 16.3" | ||
| Skimmer Chamber (Int. DIM, with Max Refugium) |
232 x 342mm | 291 x 413mm | 368 x 413mm | |
| 9.1" × 13.5" | 11.5" × 16.3" | 14.5" × 16.3" | ||
| Pump Chamber (Int. Dimensions) |
142 x 240mm | 192 x 382mm | 192 x 382mm | |
| 5.6" × 9.5" | 7.6" × 15" | 7.6" × 15" | ||
| ATO Tank |
ATO Dimensions | 203 x 400 x 380mm | 305 x 475 x 380mm | |
| 8" × 15.7" × 15" | 12" × 18.7" × 15" | |||
| ATO Volume | 28 L/7.3 gals | 51 L/13.4 gals | ||
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | ||
| Plumbing | Main Drain | DN25 (32mm/1-1/4") | DN32 (40mm/1-1/2") | |
| Emergency Overflow | DN25 (32mm/1-1/4") | DN32 (40mm/1-1/2") | ||
| Pump Return | DN20 (25mm/1") | DN25 (32mm/1-1/4") | ||
| Nozzle(s) | 2 x DN15 (20mm/3/4") | 2 x DN20 (25mm/1") | ||
| Manifold Kit | Manifold 15 (Single outlet) | |||
| Filtration | Filter Socks | 1 x 180mm/7" MESH | 2 x 180mm/7" MESH | |
| Filter Sock Silencers | 1 x 180mm/7" | 2 x 180mm/7" | ||
| Interchangable with Roller Filter | YES | |||
| Marine- Shield Cabinet |
Cabinet Model | ALP 4820 | ALP 6025 | ALP 7225 |
| Cabinet Dimensions | 1,200 x 500 x 900mm | 1,536 x 643 x 927mm | 1,836 x 643 x 927mm | |
| 47.2" × 19.7" × 35.4" | 60.5" × 25.3" × 36.5" | 72.3" × 25.3" × 36.5" | ||
| Sump Compartment (Int. Dimensions) |
1,041 x 420 x 813mm | 1,367 x 543 x 785mm | 1,667 x 543 x 785mm | |
| 41" × 16.5" × 32" | 53.8" × 21.4" × 30.9" | 65.6" × 21.4" × 30.9" | ||
| Electrical Compartment (Int. Dimensions) |
232 x 91 x 774mm | 303 x 91 x 774mm | 303 x 91 x 774mm | |
| 9.1" × 3.6" × 30.5" | 11.9" × 3.6" × 30.5" | 11.9" × 3.6" × 30.5" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door & Side Panels | 18mm Wood Particle Board, PVC Laminated | |||
| Bottom Panels | 10mm PVC Board | |||
| Cabinet Color | WHT-White, BLK-Black | |||
