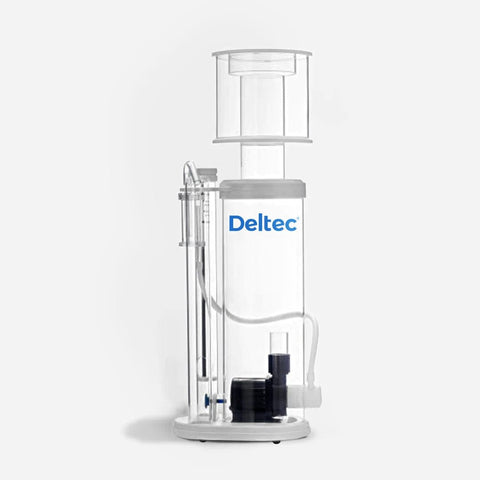

Deltec Internal Skimmer 400i (24V DC Pump)

Model Specifications

• Aquarium size: 30-105 gallons

• Power consumption: 9 watts with 300 liters of air/hr. (In normal operation)

• Dimensions (LxWxH): 8.25 x 5 x 20.25 inches

• Footprint: 8.25 x 5 inches

• Body diameter: 4.3 inches

• Cup riser tube diameter: 3 inches

• Pump DCC 1 (24V)

• SWC1 Controller

• For sumps with 6-10 inch water level

Deltec has been a market leader in high-quality marine equipment for over 25 years. Their new series of protein skimmers continue their long history of German hand built, high efficiency protein skimmers. They have used their experience to introduce many innovations in skimmer technology over the years, pushing the boundaries of performance and efficiency. Each protein skimmer offers a sleek compact design and incorporates numerous features.

Product Features

• Ergonomic cylinder design ensures the best skimming results.

• Hollow or “double base” footplate design

• Emergency overflow system with water level indicator

• Whisper quiet operation

• Extremely low power consumption

• Quick and easy removal of the pump

• Variable/adjustable DC pump

• Tool less disassembly

Hollow footplate design

The footplate design offers a new methodology to water flow within the skimmer, giving better contact time between the air/water mixture without increasing the overall height of the skimmer. This also reduces the chance of micro bubbles escaping into the aquarium and reduces turbulence and noise within the skimmer body.

Emergency overflow system with water level indicator

The innovative safety overflow feature introduced by Deltec automatically shuts off the air input if the water level inside the skimmer rises, preventing the skimmer cup from flooding.

Whisper quiet operation

Every skimmer is fitted with an air silencer to reduce noise produced by air being drawn into the protein skimmer and along with the high-performance pump these skimmers operate with very minimal noise.

Variable/adjustable DC pump

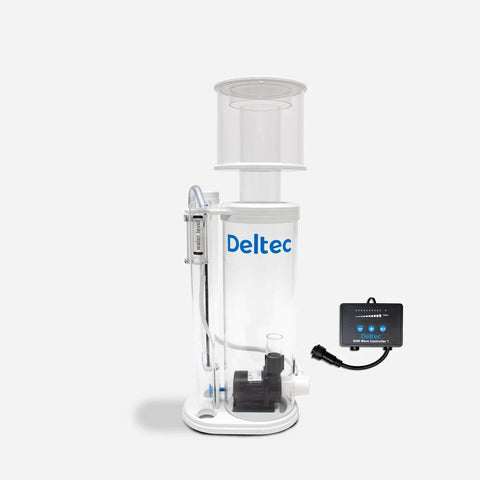

The Deltec 400i protein skimmer is operated with the 24V Deltec DCC 1 pump that can be electronically adjusted with the included ten stage control. This allows the water flow and air input to be optimized to the specific requirements of the aquarium.

The pump can be slowed to allow a longer dwell time inside the unit for lightly stocked aquariums or increased to suit well stocked aquariums.

The DCC1 pump can generate 450 liters per hour of air using only 12w of power.

Tool less disassembly

Due to waste accumulation and calcium carbonate build up protein skimmer pumps generally have to perform in a harsh environment and need to be cleaned periodically to maintain peak performance. With this in mind, Deltec has incorporated a quick tool-less removal system for the pump allowing for easy disassembly, in tests Deltec has been able to remove a pump for cleaning in less than 20 seconds meaning less time spent maintaining equipment and more time to enjoy your aquarium.
