Evolution Aqua K1 – Award-Winning Filtration Media

Evolution Aqua revolutionised the koi market by introducing ground-breaking moving bed filtration technology with the Nexus filter. K1 media offers superior mechanical and biological filtration and dramatically increases the efficiency of filter systems.

Key Features

• 500 m² per m³ Protected Surface Area

• Dramatically increases the efficiency of filter systems

• Provides a large surface area for beneficial bacteria to colonise

• Provides mechanical and biological filtration

• Suitable for use in both static and moving bed filter systems

K1 Moving Bed Technology

Moving bed media has many advantages over traditional static bed filters. The large surface area is constantly exposed to oxygen and nutrients, the media self-cleans as it tumbles, and the world-famous protected surface area enables bacteria and higher organisms to dwell safely inside the media, exposed to oxygen and food but safe from harmful cleaning practices.

Over the last twenty years, moving bed technology has become standard in pond filters. Evolution Aqua pioneered this approach and has conducted more research and development into this area of biological filtration than anyone else. Nexus and Eazy Pod filters use K1 and K1 Micro exclusively, all designed and manufactured in the UK.

Specifications

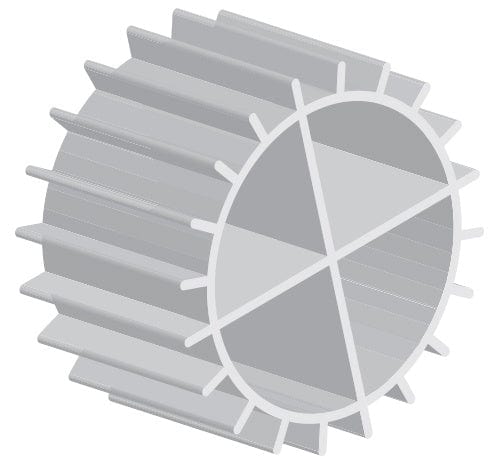

• K1 media diameter: 10.5mm; K1 Micro diameter: 7mm

• K1 length: 8mm; K1 Micro length: 9mm

• K1 weight: 150kg per m³; K1 Micro weight: varies per m³

• K1 total surface area: 950 m² per m³; K1 Micro total surface area: 1400 m² per m³

• K1 protected surface area: 500 m² per m³; K1 Micro protected surface area: 950 m² per m³

How to Calculate Media Requirements

In a moving bed chamber, fill no more than 25% of the chamber with K1 media. This allows enough water to properly fluidise the media and maintain optimal filtration performance.
