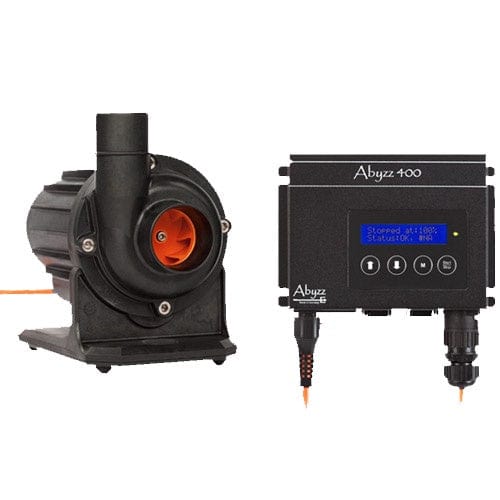

The innovative Abyzz A400 pump with titanium rotor consists of a programmable, high-performance, menu-driven electronics (driver) and a sinusoidal-commutated synchronous motor (pump).
The high efficiency of the motor makes the pump, in conjunction with the adjustable to your power requirements speed, an energy-saving solution. The integrated bearing rinse offers optimum protection against calcification and, in conjunction with the silicon carbide bearings used and a special carbide shaft, ensures low-maintenance operation.
The processed materials are designed for a long service life and meet the highest requirements and quality standards. The product is developed and produced in Germany by venotec.
Adjustable speed range (0 to 100%)
Programmable control (e.g wave and random mode)
Extensive protection against e.g. dry running, overtemperature and overcurrent
Smooth start
Bus-compatible interface for peripheral devices
Lockable plug contacts
Low noise operation
Freshwater and saltwater aquaristics
Pond filter systems
streams
Abyzz A400 pump and driver
Power cable (1.5m) and connection cable
Operating instructions
Installation either submerged or dry in piping, not self-priming.
The inlet / outlet connections are suitable for PVC / ABS adhesive fittings.
| Weight | NA |
|---|---|
| Dimensions | 420 × 290 × 134 mm |
| Maximum flow rate | 23500 L/Hr |
| Rated flow rate | 18600 L/Hr |
| Delivery height | 12.5 meters |
| Outflow speed maximal |
7,5 m/s |
| Outflow speed nominal |
6,4 m/s |
| Operating pressure (max.) | 1.2 Bar |
| Immersion depth (max.) | 2.0 Meter |
| Inlet/outlet connections | 50 / 40mm |
| Line Length (Pump) | 3.0 Meter (10M Option Available at extra cost) |
| Power consumption | 4 - 400W |
| Operating voltage | 240V; 50-60Hz |
| Ambient temperature | +2 °C - +40 °C |
The processed materials are designed for a long service life and meet the highest requirements and quality standards. All Abyzz products are developed and produced in Germany. Each Abyzz pump is fully tested prior to shipping. So we can ensure you get only the perfect product.
All Abyzz pumps come with a 10-year lifetime warranty after registration – at no extra cost, of course!
