Waterbox Platinum Pro - Reef 220.6 Cabinet Black


Waterbox Platinum Pro - Reef 220.6 Cabinet Black


Net Price


Available stock: 0


This product is only available for pickup

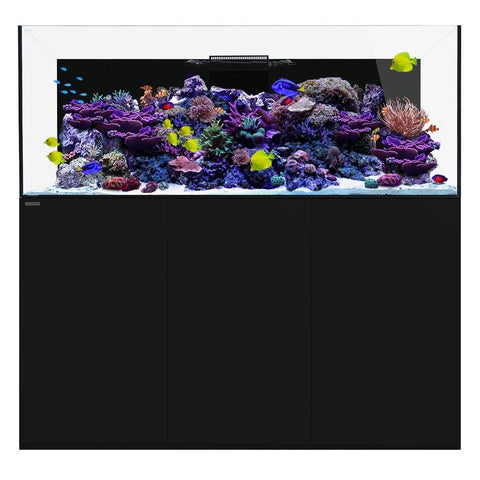

Waterbox Platinum Pro 230.6 - Black

Waterbox Platinum™ PRO series Professional Reef Aquariums provide advanced hobbyist with a customizable foundation to design their dream Reef Aquarium. Our Professional Series Platinum Reef Tanks expand on the Platinum line with much larger full sized systems to give professional reef keepers more options.

Rimless 15-19mm Starphire Ultra-Clear™ Beveled Glass

Starphire  Ultra-Clear™ glass with the highest quality silicone and crisp edges. No sloppy corner silicone here. Each aquarium is water tested, polished and inspected before it is brought to market.

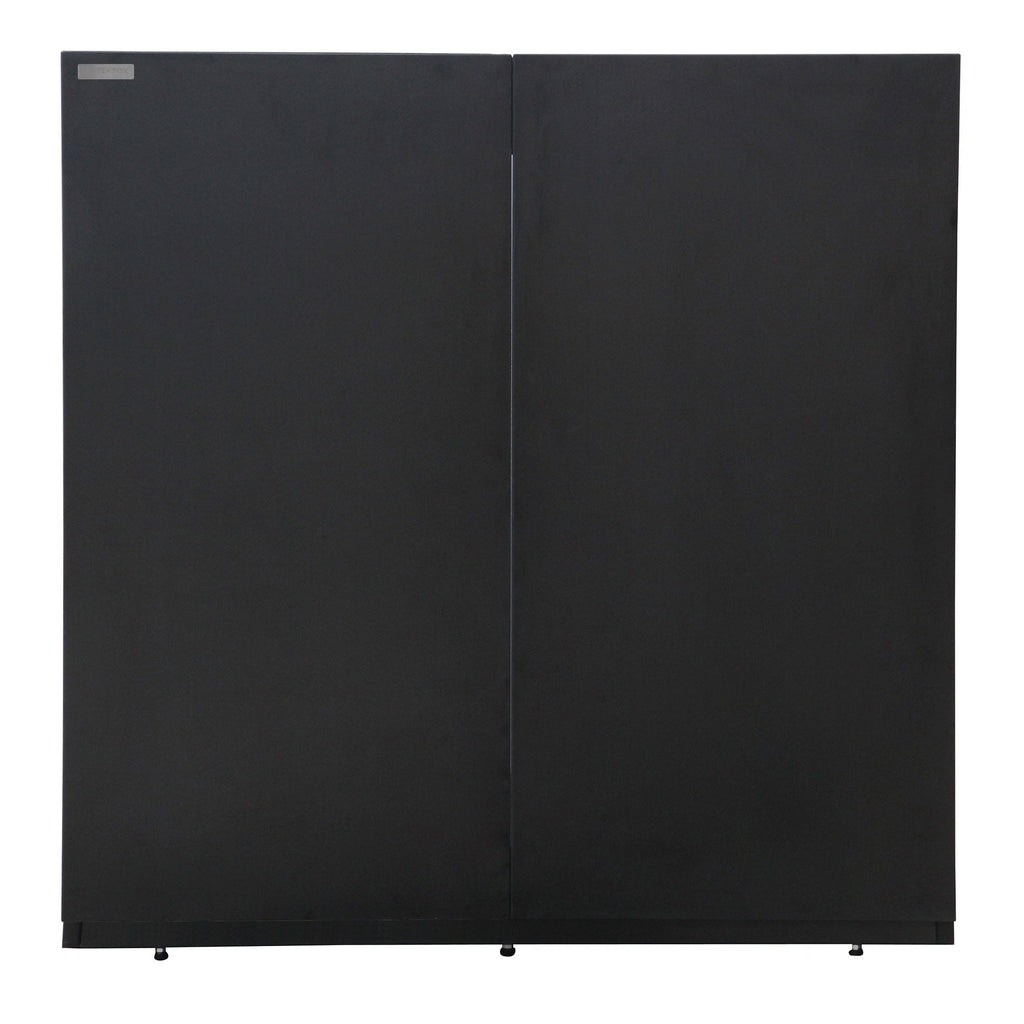

Marine Spec Cabinet in Black or white

Made by world renown furniture manufacturer, the Platinum Series cabinets are heavy duty UV coated plywood. Includes stainless hinges, push open doors and leveling feet. Our 4 foot and larger models include a separate section for equipment storage

Micron Socks

Each Platinum PRO System comes with 2 Larger 7” Filter Bags to keep your water crystal Clear. Our socks are standard size unlike other aquariums in the market, so a simple stop at the fish store to find a new pair will do the trick.


Larger Auto top off reservoir for use with all popular Electronic ATO systems. Our ATO reservoir can also double as a refugium for those that like to tinker.


Prefabricated Proprietary Plumbing System

All Pro series include a unique dual manifold system designed for media, calcium, biopellet and phosphate reactors.  This system eliminates the need for an extra pump in the filtration area.  The new designed gate valve precisely fine tunes the flow through your overflow box and sump.

Dual adjustable overflow returns

In order to maximize directional flow, the Waterbox Platinum Series includes dual adjustable return nozzles.

Precision gate valve

Controls the flow through the drain system and maintains quiet operation.

Safety drain

To prevent overflowing, a secondary safety drain is available.

Whisper quiet overflow design

Our design eliminates gurgling sounds from the overflow box.

No gluing required

Pre-cut and pre-glued pieces allow for easy installation and maintenance.

Flexible return pipe

Can be easily adjusted to accommodate your choice of return pump.

Quick disconnect unions

Disassemble easily without any cutting of plumbing required.



Platinum PRO 170.4/5 Platinum PRO 190.5 Platinum PRO 230.6
Main Features
Starphire Ultra-Clear™ Glass
Glass Thickness(mm) 3/5″ (15mm) 3/4″ (19mm) 3/4″ (19mm)
Glass Overflow System
Built in surface skimmer
Heavy Duty UV Coated Cabinetry
Integrated Evaporation (ATO) Reservior Integrated Integrated Integrated
System Volumes
Display Water Volume (Gal) 130 Gal (492L) 141 Gal (533L) 169 Gal (639L)
Sump Water Volume (Gal) 40.3 Gal (153L) 45.3 Gal (172L) 40.3 Gal (153L)
Total System Volume (Gal) 170 Gal (644L) 186 Gal (704L) 228 Gal (863L)
Evaporation (ATO) Reservior Volume (Gal) 5.8 Gal (22L) 5.8 Gal (22L) External Chamber 18.7 Gal (71L)
Display Dimensions
Tank Length (IN) 55″ (1386mm) 60″ (1536mm) 72″ (1836mm)
Tank Width (IN) 26″ (650mm) 26″ (650mm) 26″ (650mm)
Tank Height (IN) 24″ (600mm) 24″ (600mm) 24″ (600mm)
Total Height with Cabinet 60″ (1500mm) 60″ (1500mm) 60″ (1500mm)
Sump Dimensions
Sump Length (IN) 32″ (820mm) 36″ (850mm) 32″ (820mm)
Sump Width (IN) 20″ (500mm) 20″ (500mm) 20″ (500mm)
Sump Height (IN) 16″ (400mm) 16″ (400mm) 16″ (400mm)
Sump Glass Thickness 1/3″ (8mm) 1/3″ (8mm) 1/3″ (8mm)
Evaporation (ATO) Reservior (IN) 9.2″ x 8.5″ x 15″ (233 x 215 x 381mm) 9.2″ x 8.5″ x 15″ (233 x 215 x 381mm) 15″ x 20″ x 16″ (38 x 50 x 40cm)
Technical Details
Water Height in Sump 9″ (23cm) 9″ (23cm) 9″ (23cm)
Skimmer Chamber 15.4″(39.11cm) x 19″(48.26cm) 15.4″(39.11cm) x 19″(48.26cm) 15.4″(39.11cm) x 19″(48.26cm)
Pump Chamber 7.4″(18.7cm) x 10.3″(26.1cm) 10.2″(25.9cm) x 10.3″(26.1cm) 6.2″(15.7cm) x 19.1”(48.5cm)
Recommended Flow Rate(GPH) Pump not included 1700GPH(6500L) *Increase flow rates by 200-500 gph when using manifolds for reactors 1800GPH(6800L) *Increase flow rates by 200-500 gph when using manifolds for reactors 2100GPH(8000L) *Increase flow rates by 200-500 gph when using manifolds for reactors
Special Features
Dual 7″ Filter Sock Chamber
Precision Gate Valve for Overflow Adjustment
Dual Manifold bypass for add on Reactors
Industry First Glass Overflow System
Cabinets by World Renown cabinet maker
Prefabricated Plumbing Kit for easy setup Included
